Graphs/Chapter 6+

Graphing involves algebra (by writing a rule or equation using mathematical symbols), arithmetic (using number pairs to make true statements), and geometry (the result of plotting points to represent the number pairs, getting lines and curves). This idea was devised by René Descartes and thus called Cartesian Geometry.

Don starts graphing in Chapter 1 with the partial sums of infinite series, but in chapter 6 he gets into slope and intercept as with Deryn below, which leads to the derivative - very important. Don starts graphing with youngsters as early as 4 years old  (on Jan. 11, 2003 see how Johann's Mom made their kitchen floor into "graph paper").

Don worked with 9 yo Deryn from WV, via IM, using a webcam so she could see what Don was writing.

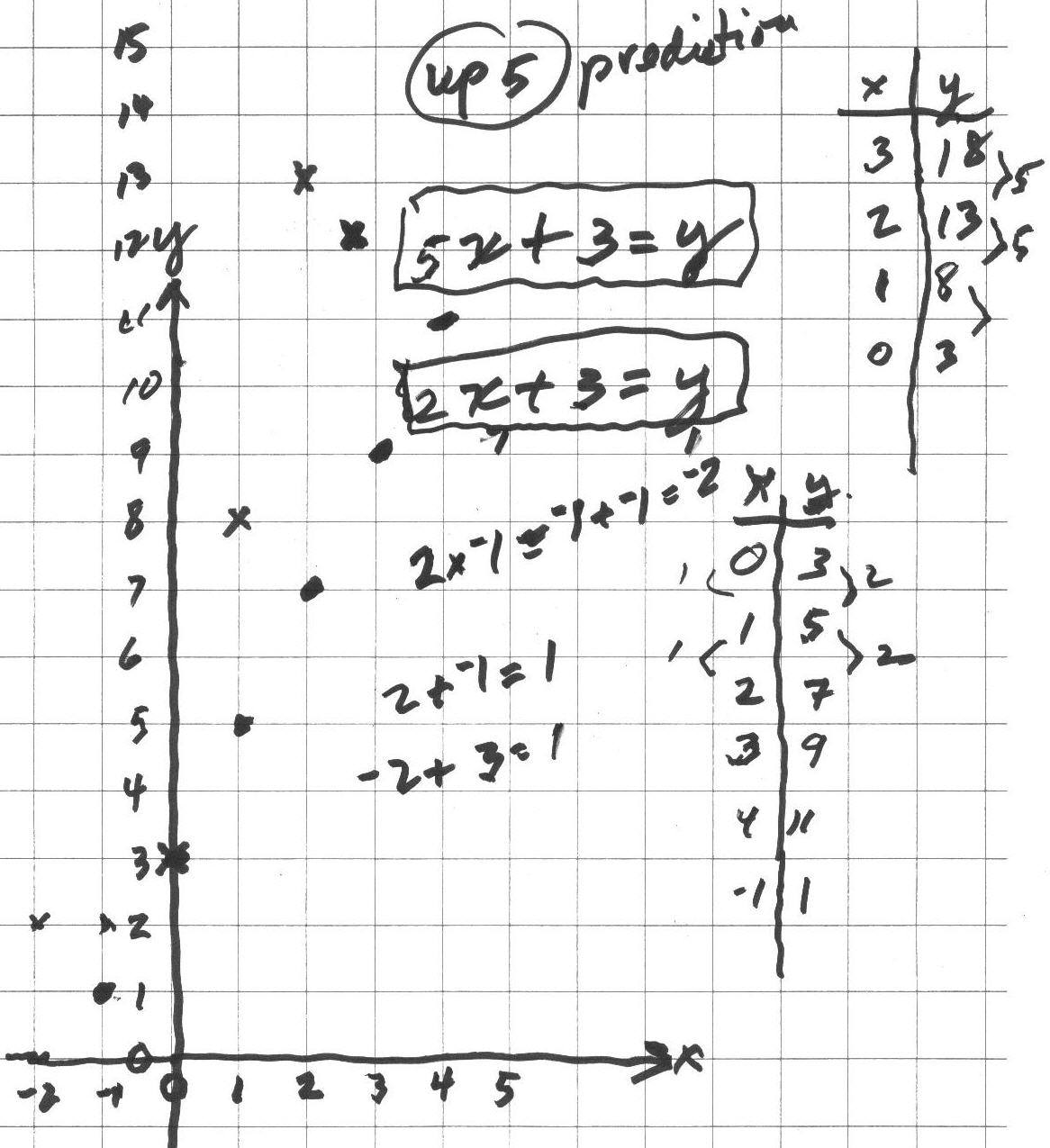

21 February 2004: Don started Deryn on graphing linear equations (straight lines): He started with 2x+3=y (the dot graph below). Deryn found pairs of numbers for x and y that would make the sentence true; she put these pairs in the lower table below. When she tried to follow the pattern, over 1 space to the right, the points went up 2 spaces. She made 2 mistakes in going down, she said (^-2,2) and (^-1,2) would work, but realized it was (^-1,1). They checked to see if that pair made the sentence true; they put ^-1 in for x and 1 for y:  2*^-1 + 3 ?= 1. They talked about this and Deryn saw that  2*^-1= ^-1+^-1= ^-2 and  ^-2 + 3 = 1, so 2*^-1 + 3 = 1 gives 1=1 which is true so (^-1,1) worked in the equation. They looked at how in the table the y-numbers went up by 2 when the x-number increased by 1 and the pattern on the graph went the same way, and there was a 2 in the equation!

Don asked Deryn what would happen on the graph if the equation was changed to 5x+3=y. She correctly predicted the points would go up 5. Deryn found the pairs of numbers in the upper table above and plotted them. She found she was correct in her prediction! Don asked her where did the adding number of 3 show up on the graph? The point (0,3) was on both graphs, so the adding number 3 was where the graph crossed the y-axis, called the y-intercept! Deryn made up an equation 3x+2=y and successfully graphed it.

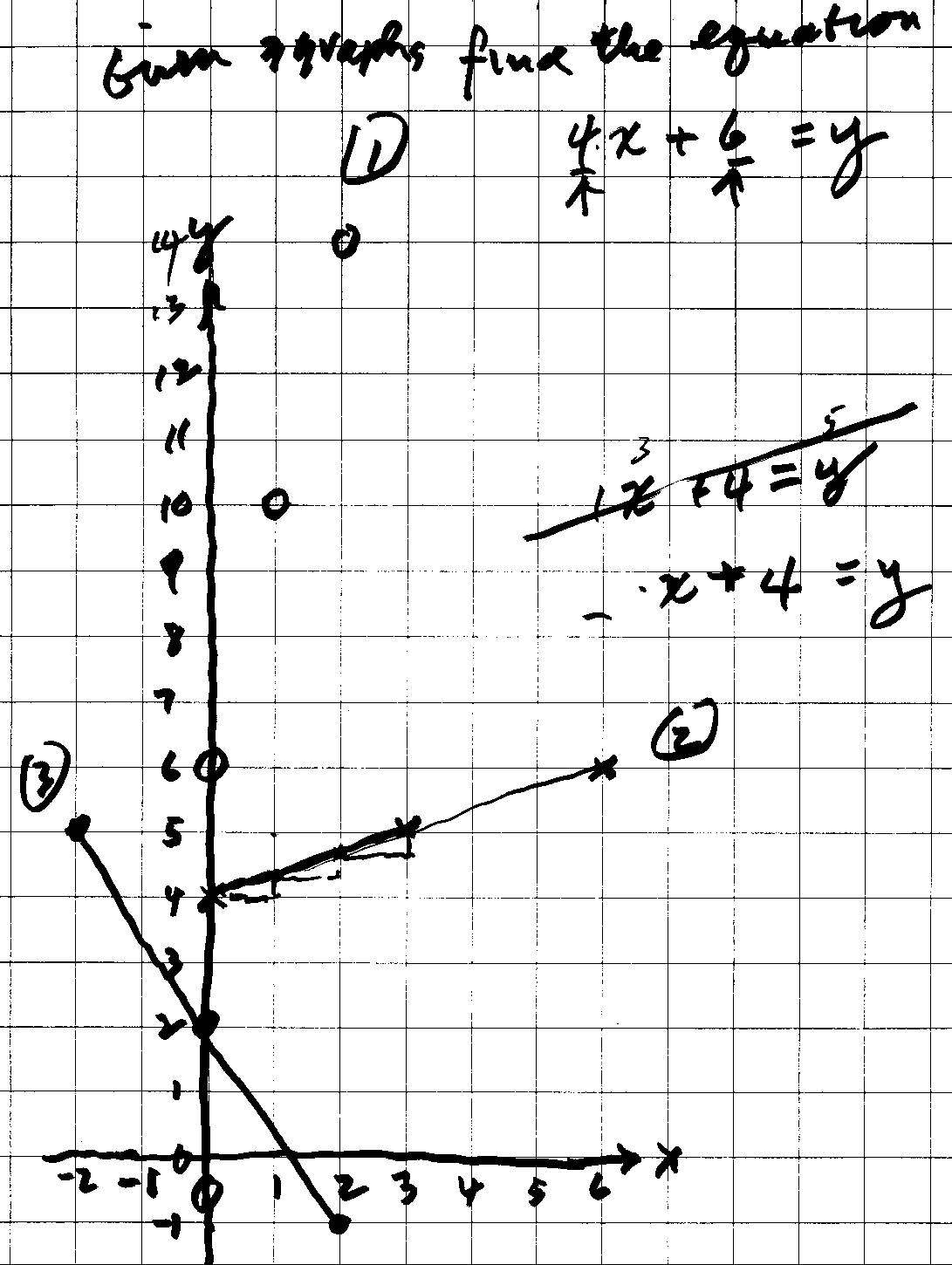

Then Don gave Deryn 3 graphs below, and Deryn was to find the equation for each. She quickly got the equation for graph #1, 4x+6=y. And tried 1x+4=y for graph #2, but that didn't work for the point (3,5). The 4 was right, so the first number couldn't be 1. If it was 1 she would go 1 to the right and 1 up, which is not correct. The pattern is 3 to the right and 1 up.

Don left Deryn to struggle a little on these last two equations for graphs #2 and #3. He will see what she comes up with next time!

Deryn worked with patterns in the numbers (arithmetic), and in the graphs (geometry), and in the equations (algebra), she multiplied and added negative and positive numbers, made a 2-variable sentence true, checked to see if her answers were correct, and made up an equation to graph, by herself.

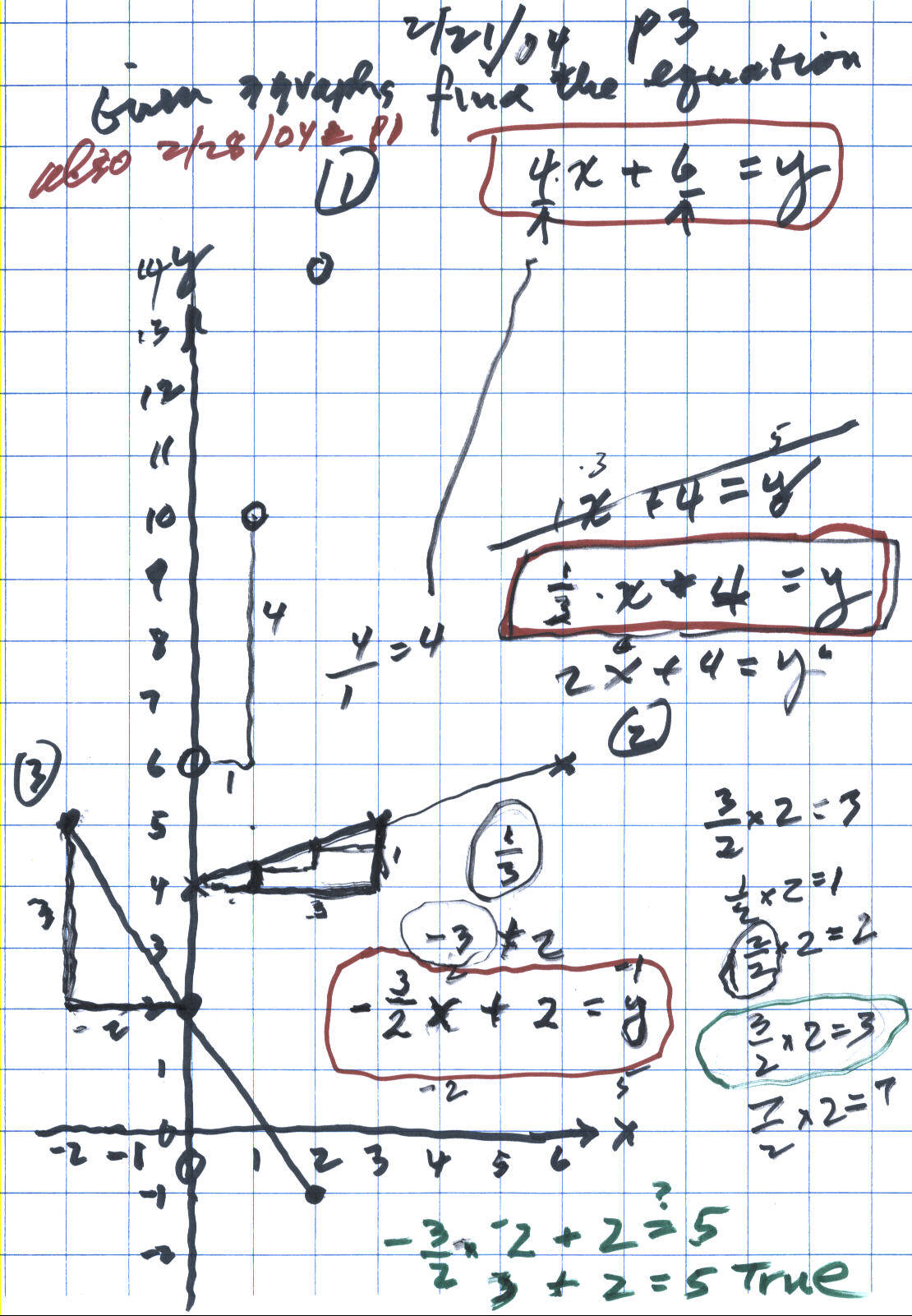

28 February: Don & Deryn continued work on equations for graphs #2 and #3 below: Deryn's second try was the equation 2x+4=y for graph #2, but when she tried the point (3,5), she found the sentence 2*3+4=5 was not true. So that equation didn't work. They knew the 4 was correct because that's where the graph crossed the y-axis (when x=0, y=4). Don showed Deryn that on graph #1 the 4 came from over 1 up 4, so 4/1  = 4, the pattern and the first number multiplied by x.

In graph #2, they went 3 to the right and 1 up, or they went 1 to the right and went up 1/3. So the slope was 1/3, and the equation is (1/3)x+4=y. They tried (3,5) again for x and y, and this time it worked (1/3)*3 + 4 =5 was true. To get the equation for graph #3, she first realized first that the slope had to be negative, and would be ^-3/2. When they went to check the point (^-2,5), they had the problem (^-3/2)*(^-2) + 2 =? 5. This brought up 2 problems, they had to work on the multiplication of two negative numbers which is positive (by patterns). They then worked on the problem of what is (3/2)*(2), which Don used the pattern  (1/2)*2 = 1, (2/2)*2 = 2, and (3/2)*2 = 3 and (7/2)*2= 7. Then they went back to the equation and was (^-3/2)*(^-2) + 2 = 5 true. Well  (^-3/2)*(^-2) = 3,  so (^-3/2)*(^-2) + 2 = 5 is true! So the equation for graph #3 was  (^-3/2)x + 2 = y.

They then went to page 93 in Don's worksheet book to do more problems like these.

Click here to see all the work Deryn did with Don, including work on the Nautilus shell, negative exponents, solving quadratic equations+.

Don still finds textbooks that do not write negative 1 with the raised sign ^-1 like he has been doing for about 40 years. He sees things like

3 - (-1) in books , instead of 3 - ^-1 which is much simpler and mathmatically correct. Notice that Anushka picked this up without Don saying anything. Even calculators have a special key for negative 1 rather than -1 when subtracting. When graphing, Don makes sure there are spaces to the left and below the axes in order for his students to get into negative numbers early.
